MXT+
- Models
- 4
- Torque
- 278 – 16,468 Nm
- Square drive
- 3/4" – 1 1/2"
- Tool weight
- 3 – 11 kg
Why this tool
What sets it apart
013 Tools in 1
Multiple arm configuration options for unparalleled versatility - Side/Coaxial Reaction, Rear Reaction, Reaction-Free.
02Wide Reaction Fixture Support
Our largest variety of reaction options to meet bolting needs for any application.
03Auto Release
No need to flip a lever to unlock the tool from an application.
Specification
How it’s built

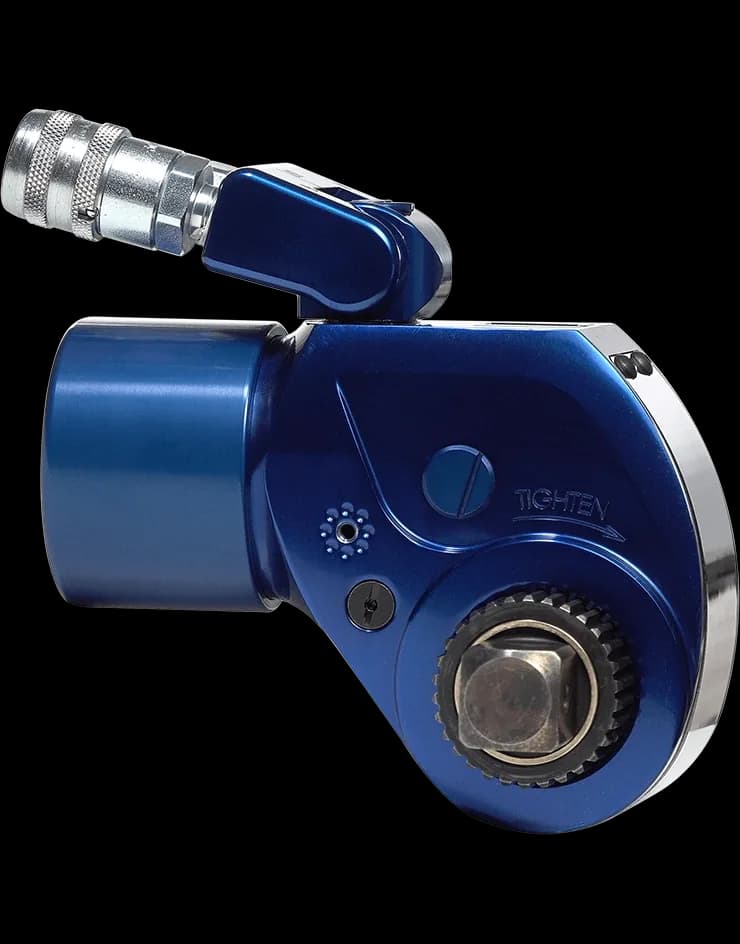

The award-winning MXT+ Hydraulic Torque Wrench combines the best of HYTORCs original MXT Wrench with the latest advanced technology including coaxial reaction drive, auto-release feature and a new cycle counter. The MXT+ Wrench is constructed from higher strength materials for rugged industrial use and highly repeatable performance.
01
Three tools in one: side or coaxial reaction, rear reaction, or reaction-free
02
Auto-release — no lever to flip to unlock the tool from the joint
03
Built-in cycle counter
04
Aircraft-grade aluminium body, 3–11 kg across the range
Sizes
Every model
Not sure which size fits the joint? Tell us the bolt and the torque and we’ll match one.
| Model | Drive | Weight (kg) | Torque Range (Nm) |
|---|---|---|---|
| MXTP-01 | 3/4" | 3 | 278-1843 |
| MXTP-03 | 1" | 6 | 629-4225 |
| MXTP-05 | 1 1/2" | 8 | 1101-7350 |
| MXTP-10 | 1 1/2" | 11 | 2482-16468 |
Works with
Accessories

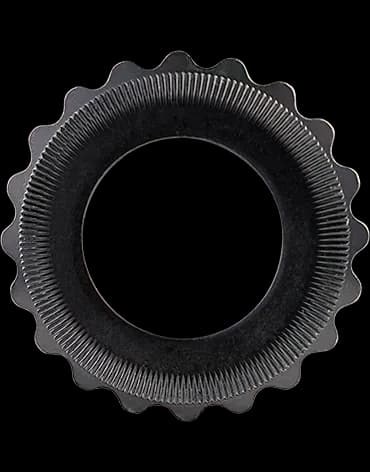

HYTORC Washer
Eliminates the need for a separate reaction fixture. Safer and more efficient. ASTM compliant.
Trackpad Fixture
Lets you reach a bolt that a standard reaction arm can't.

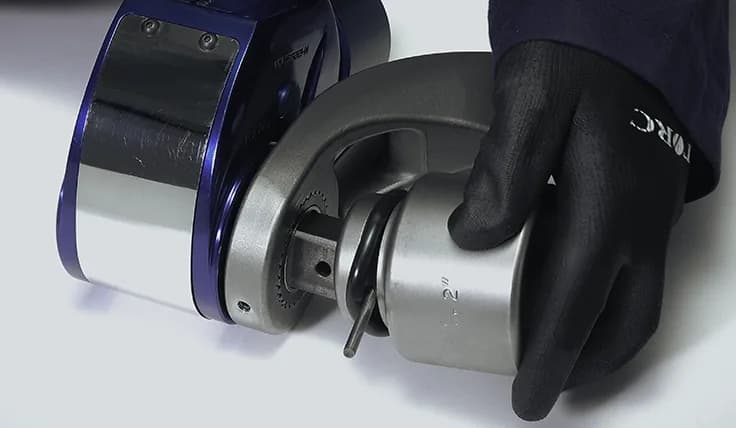

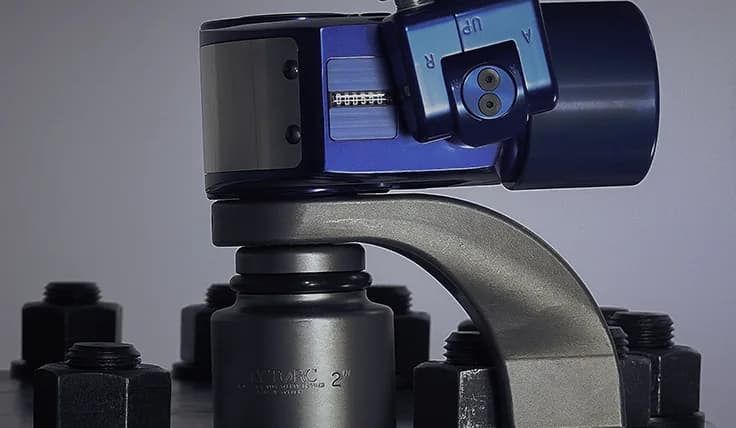

Coaxial Reaction Arm
Ensures more stable and precise torque application through its coaxial design.
HYTORC Nut
Converts torque into tension, eliminating galling and the need for a separate reaction fixture.

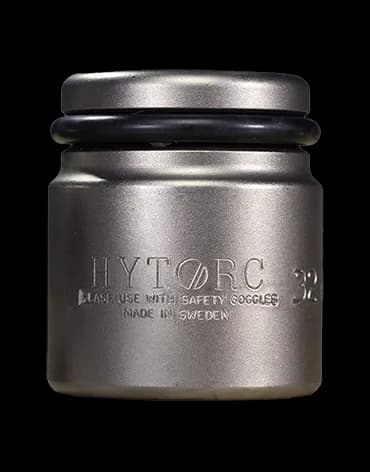

Sockets
Available in standard, deepwell, 6 point and 12 point.
Next step
Get the MXT+ on your site
Supplied, commissioned and supported from Kitwe, with operator training when the tool lands.
